[AWS] Rclone을 사용하여 Windows에서 AWS S3 마운트 탑재



## 버킷에 폴더 생성후, 임의의 파일 있어야함

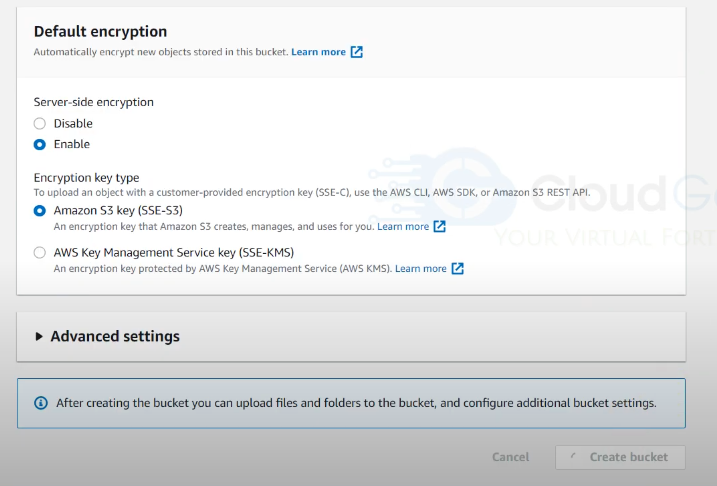

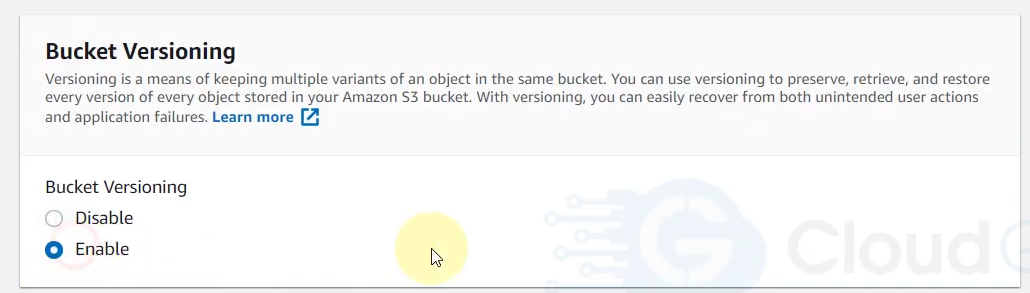

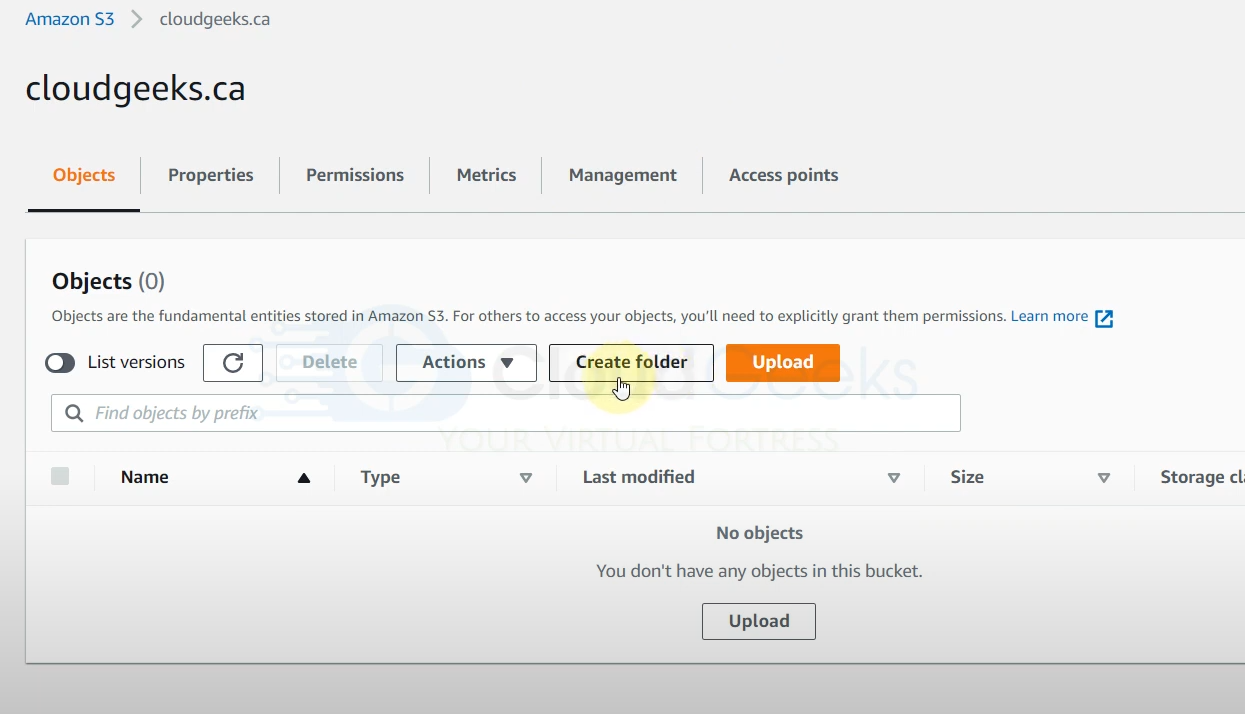

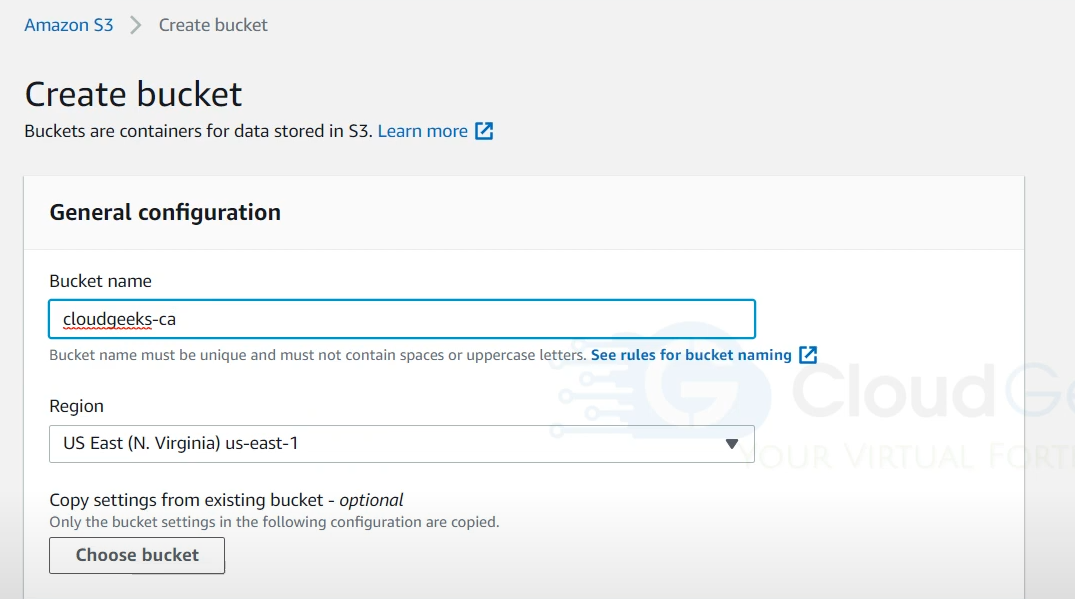

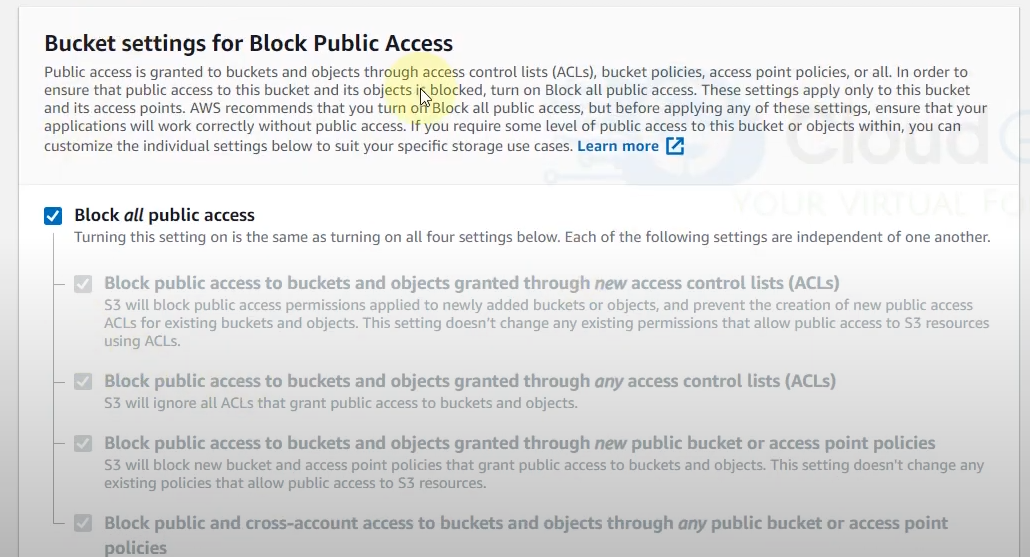

## 비공개 S3 버킷 생성

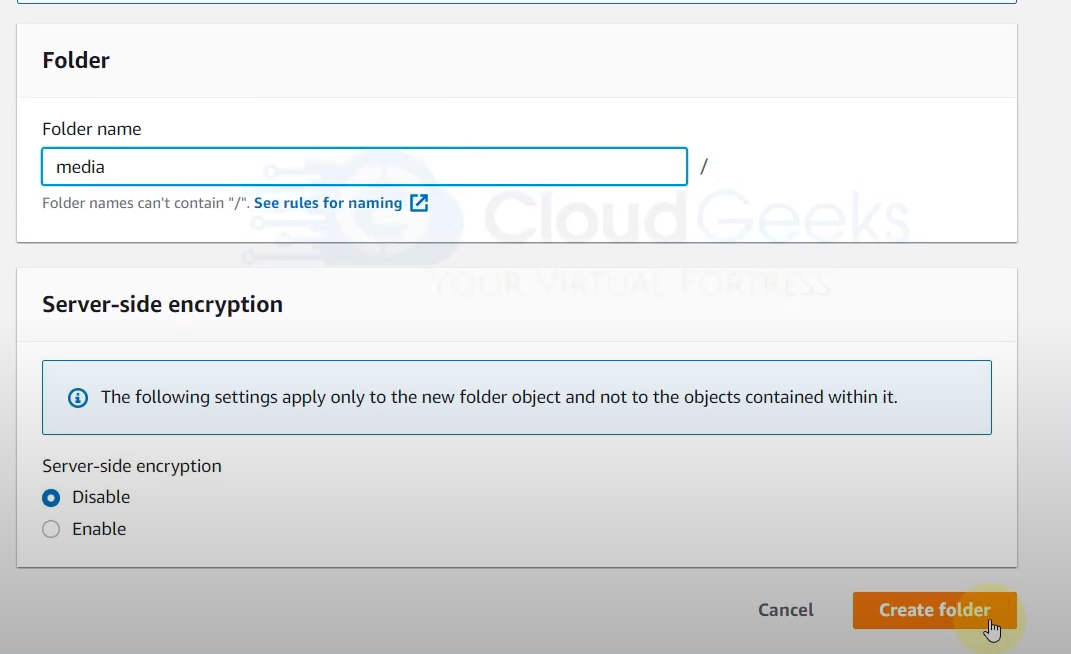

- 폴더 만들기 (필수)

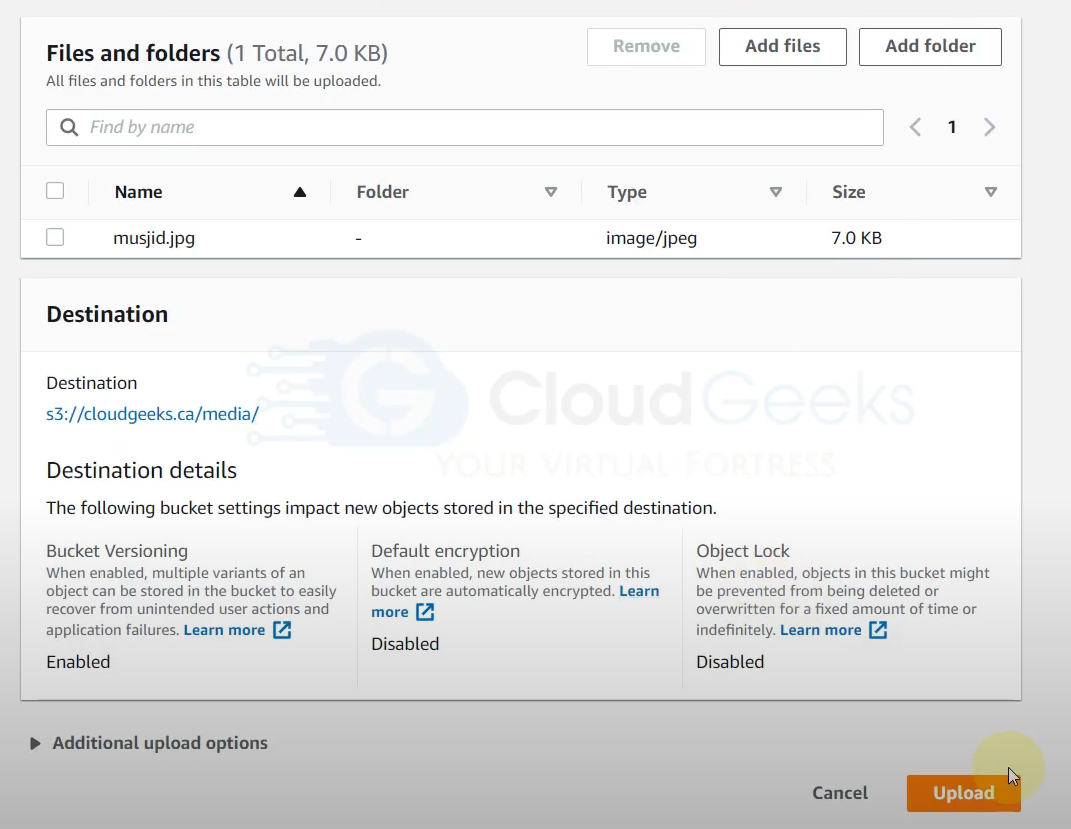

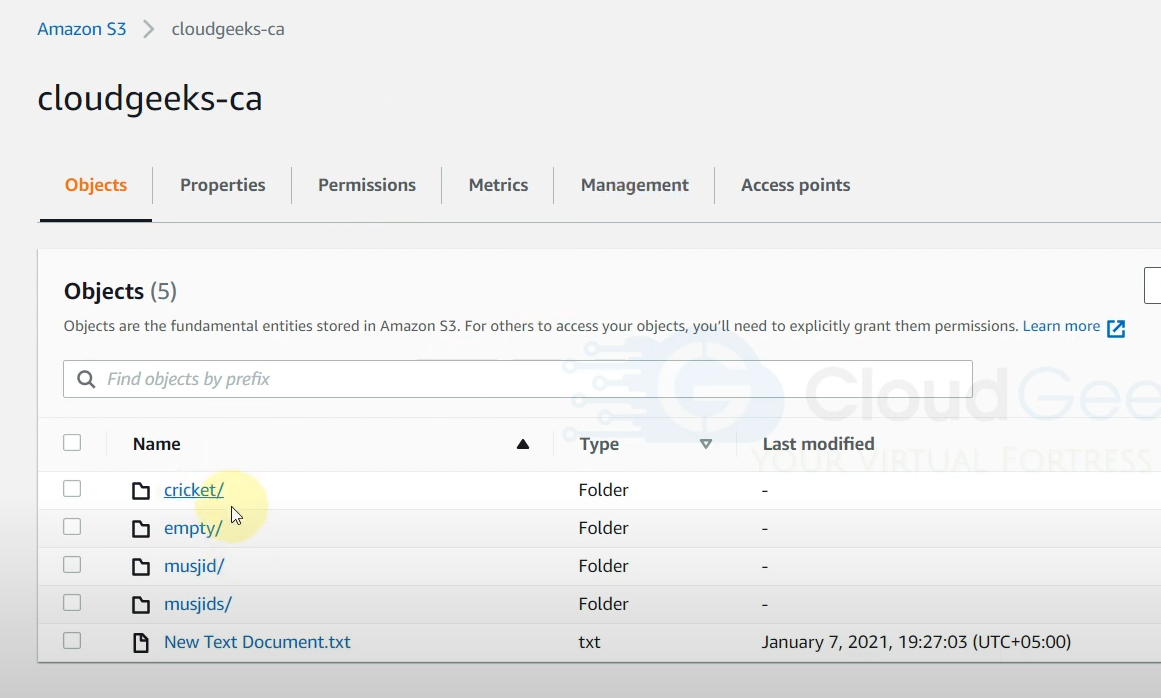

- 샘플 사진 업로드





## 접속용 Windows EC2 생성

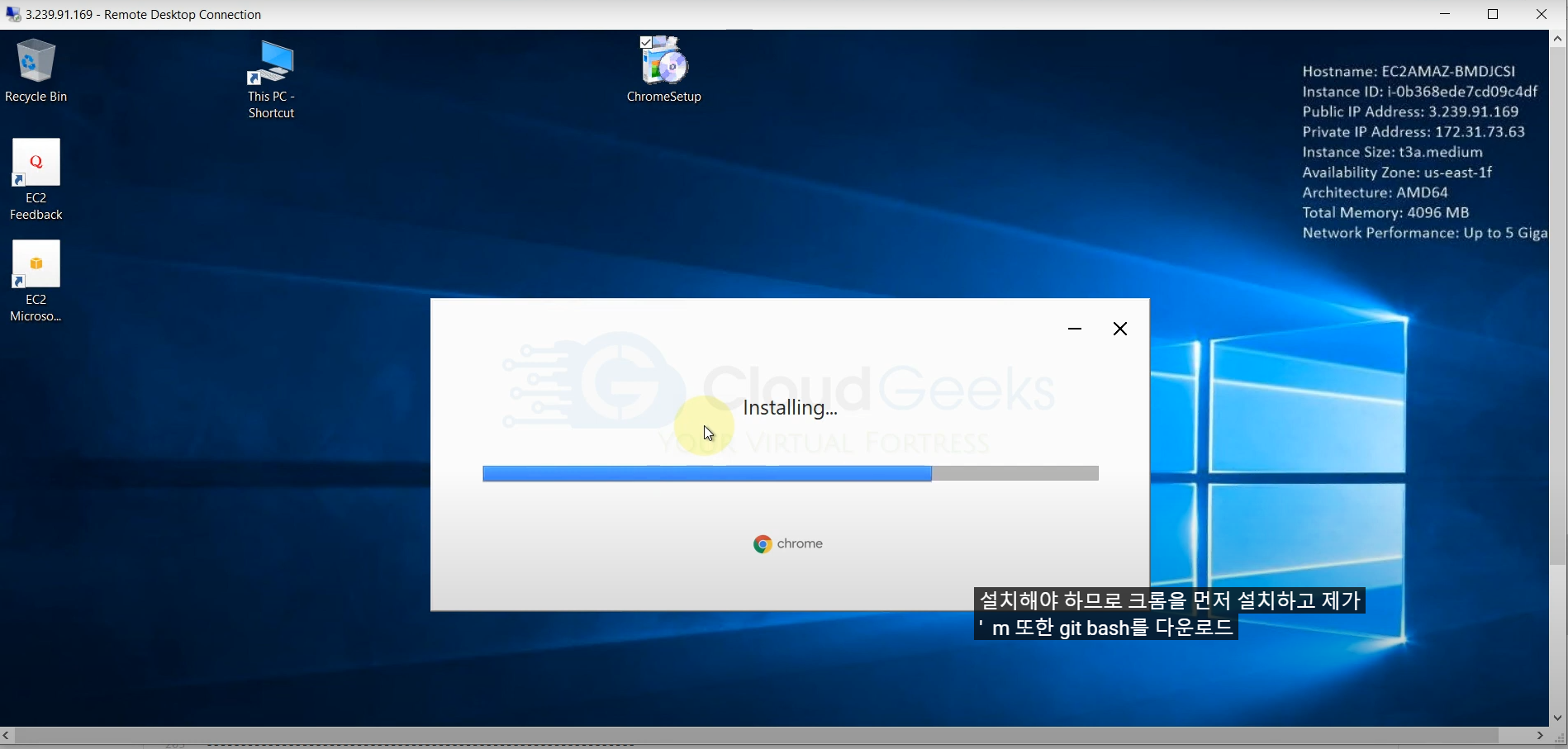

- 크롬 설치

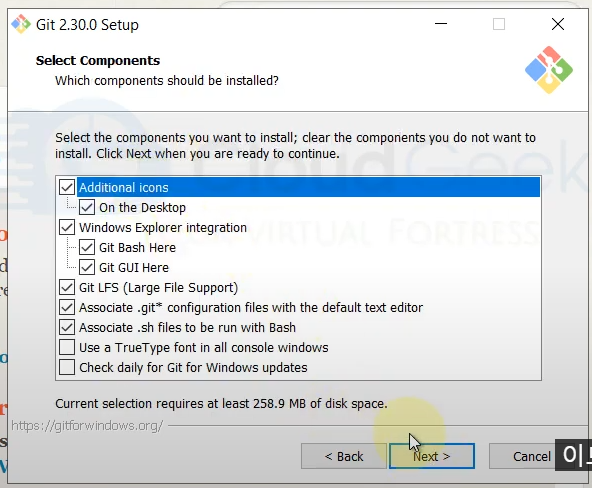

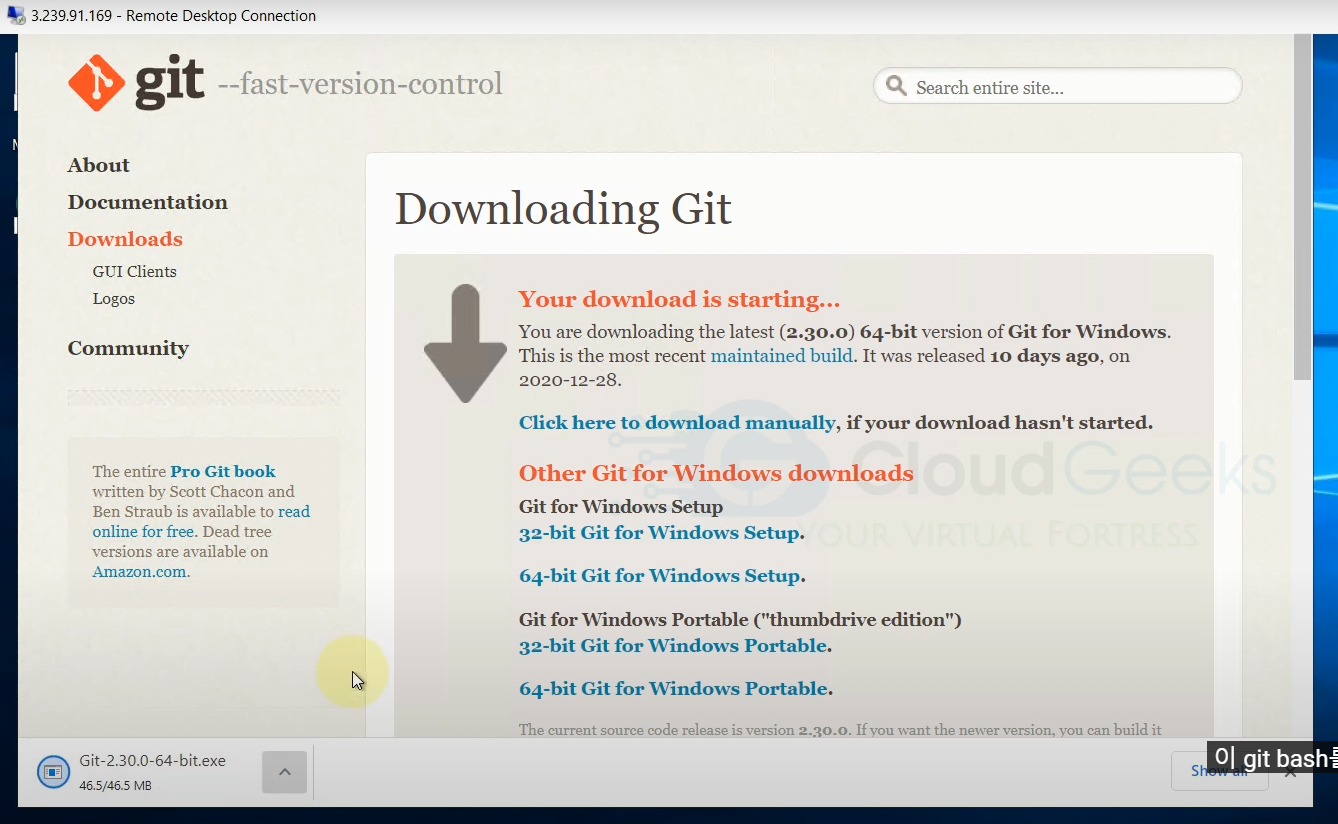

- Git 설치

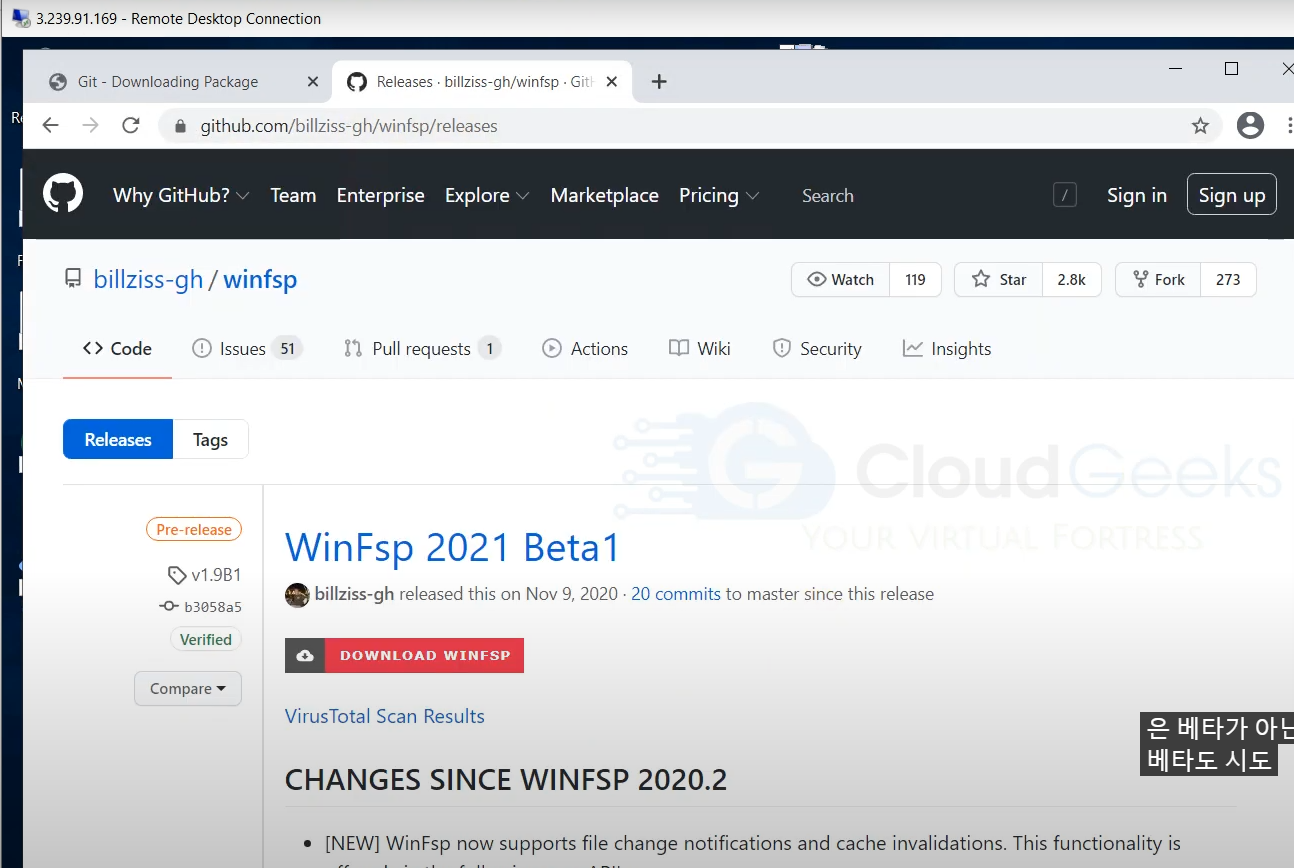

- 1. Winfsp 안정화 버전 설치 할 것



- 2. Rclone 다운로드

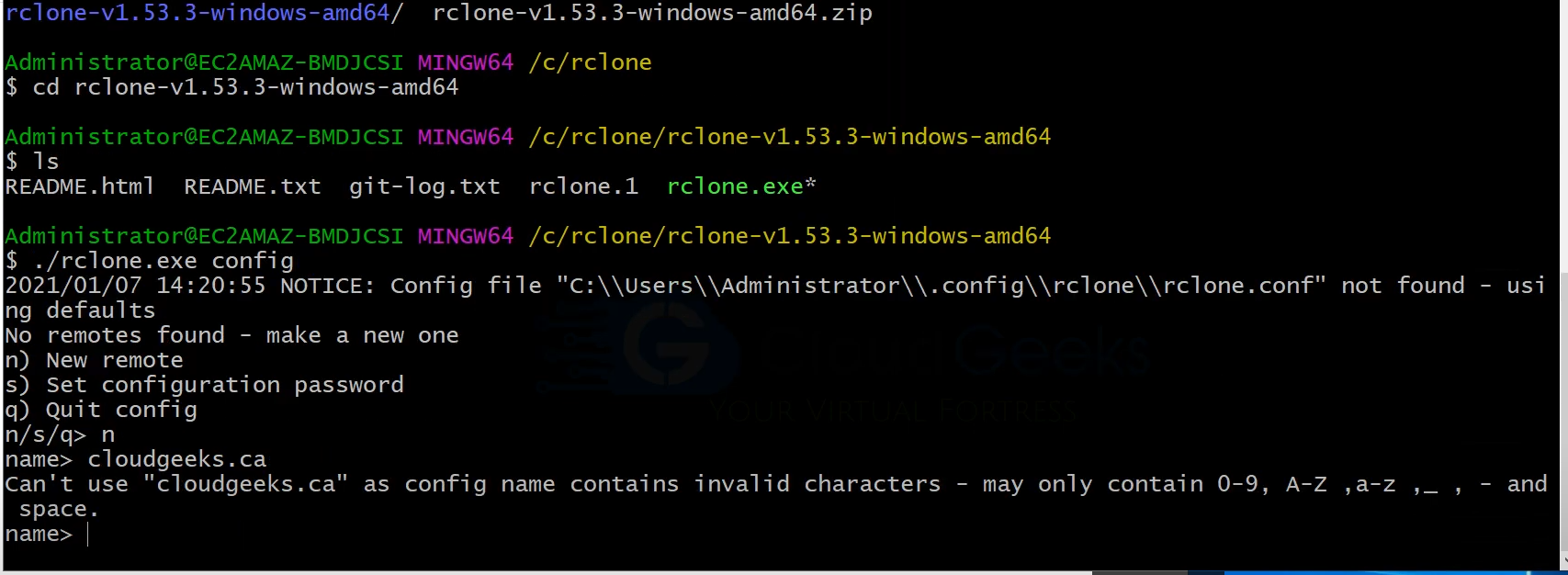

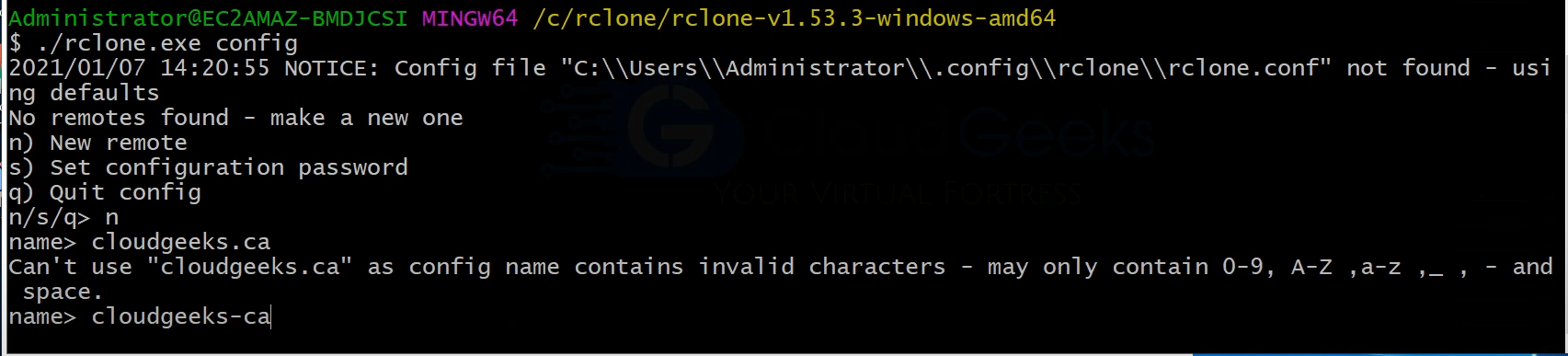

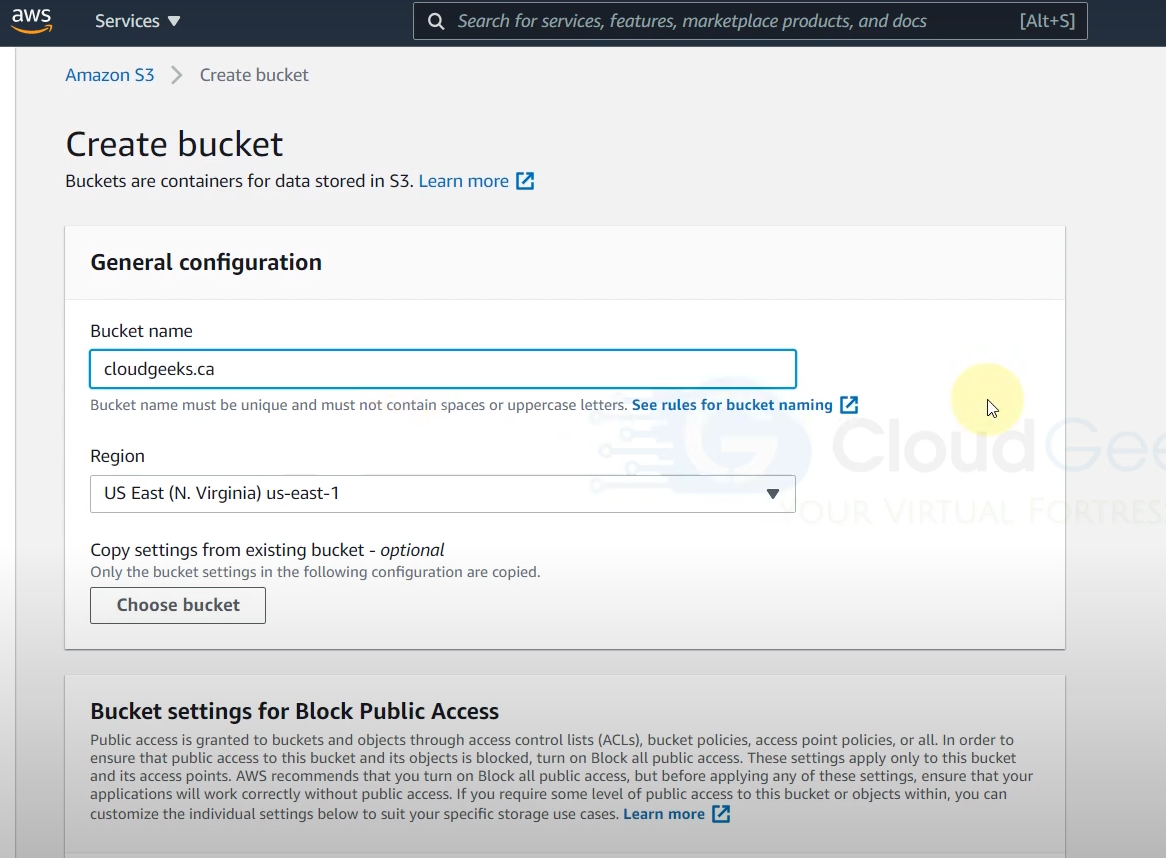

- 버킷명 제약사항 있음 ( . 사용할 수 없음)



- 버킷 재생성 (cloudgeeks-ca)



- 재시도

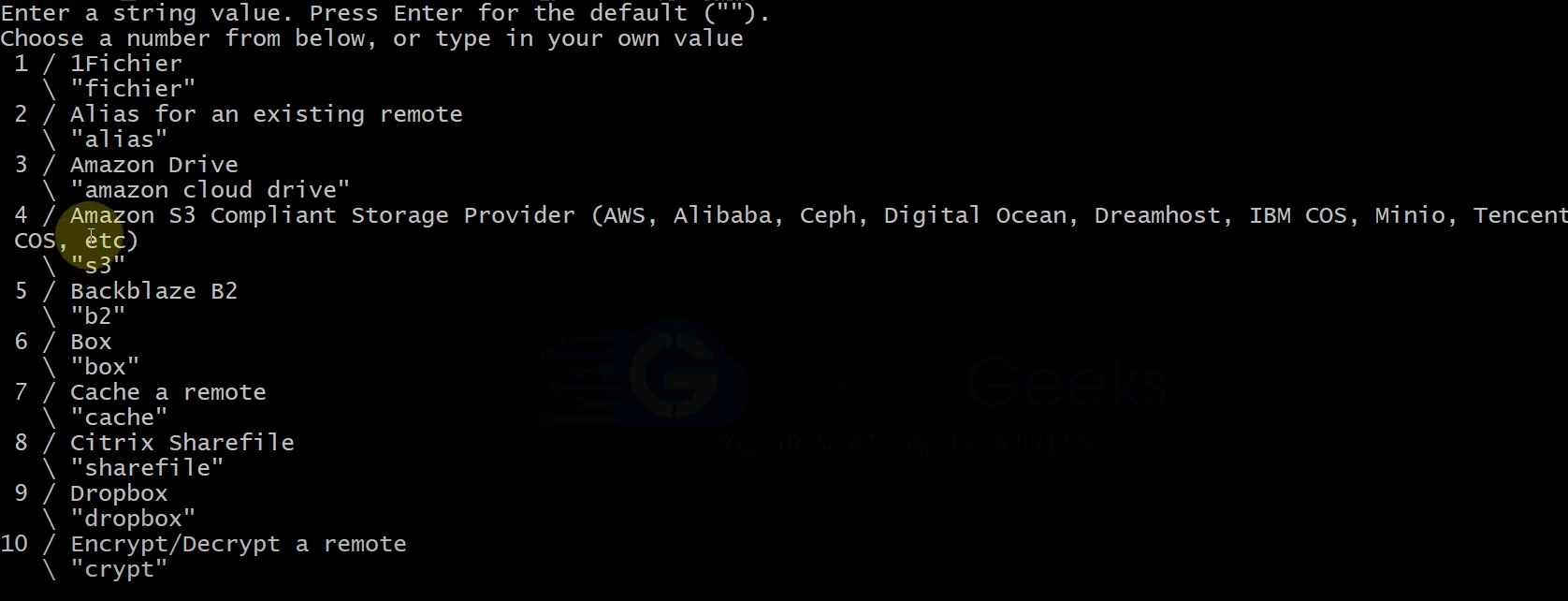

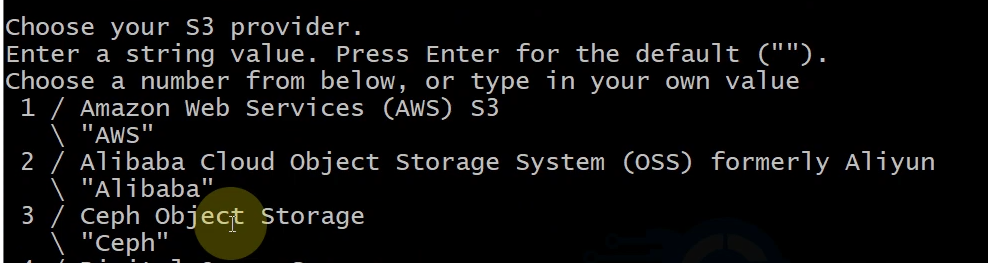

- 4 입력



- 1 입력

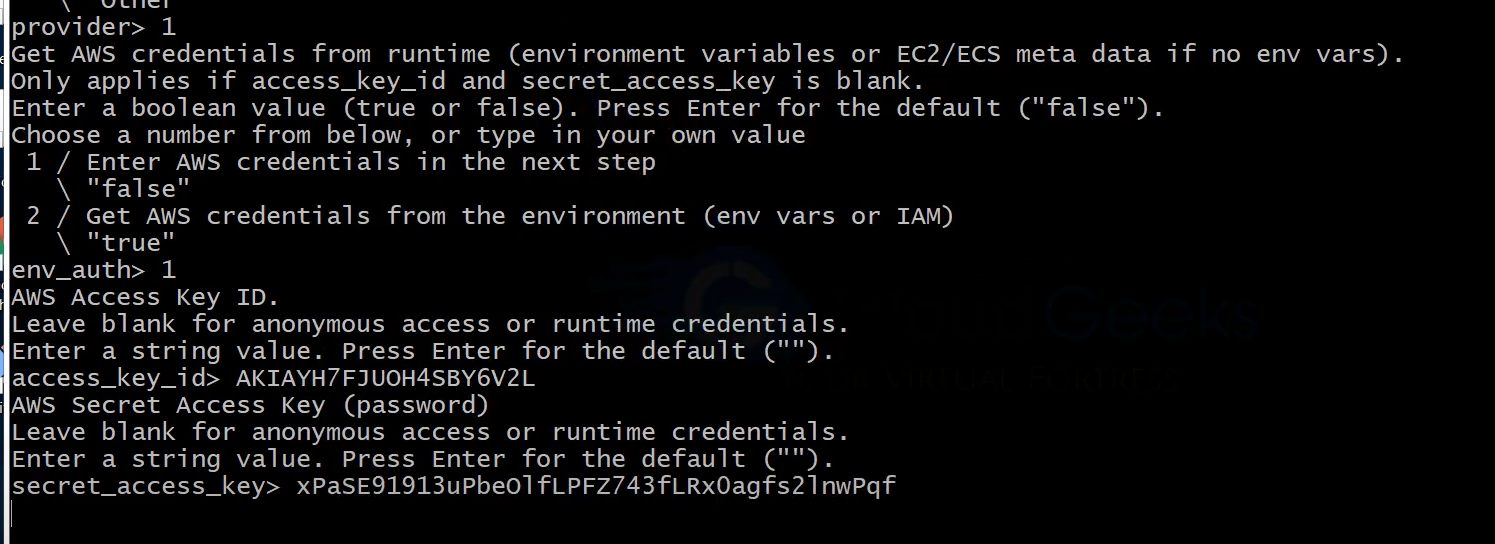

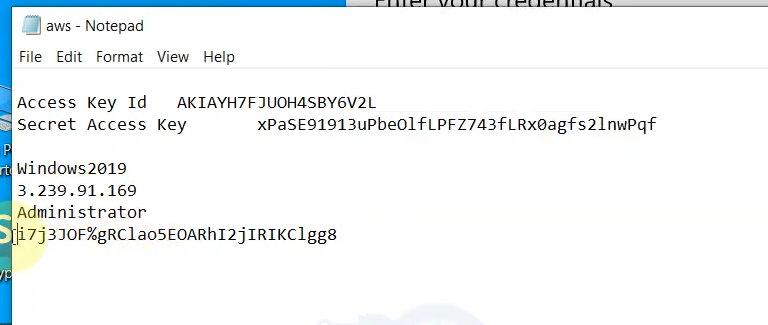

- Access Key 입력

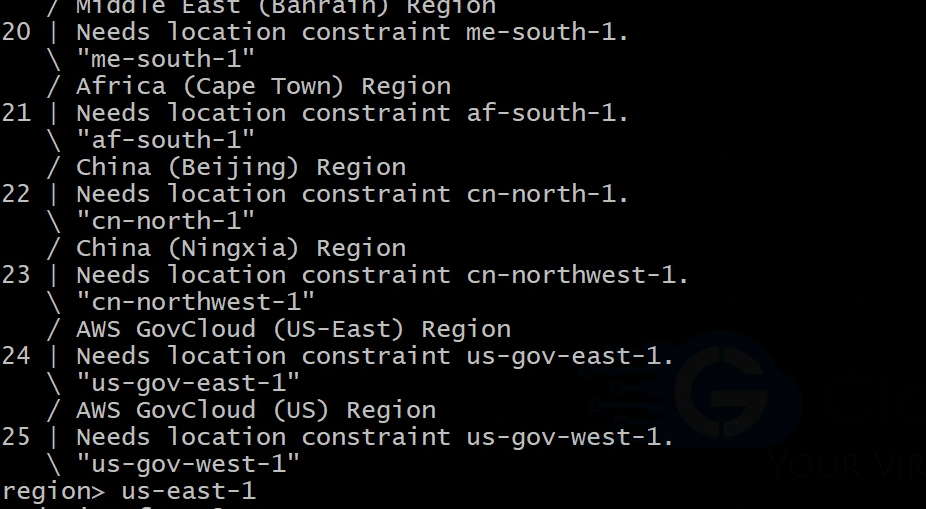

- 리전 선택 (나머지 모든 설정 엔터 진행)

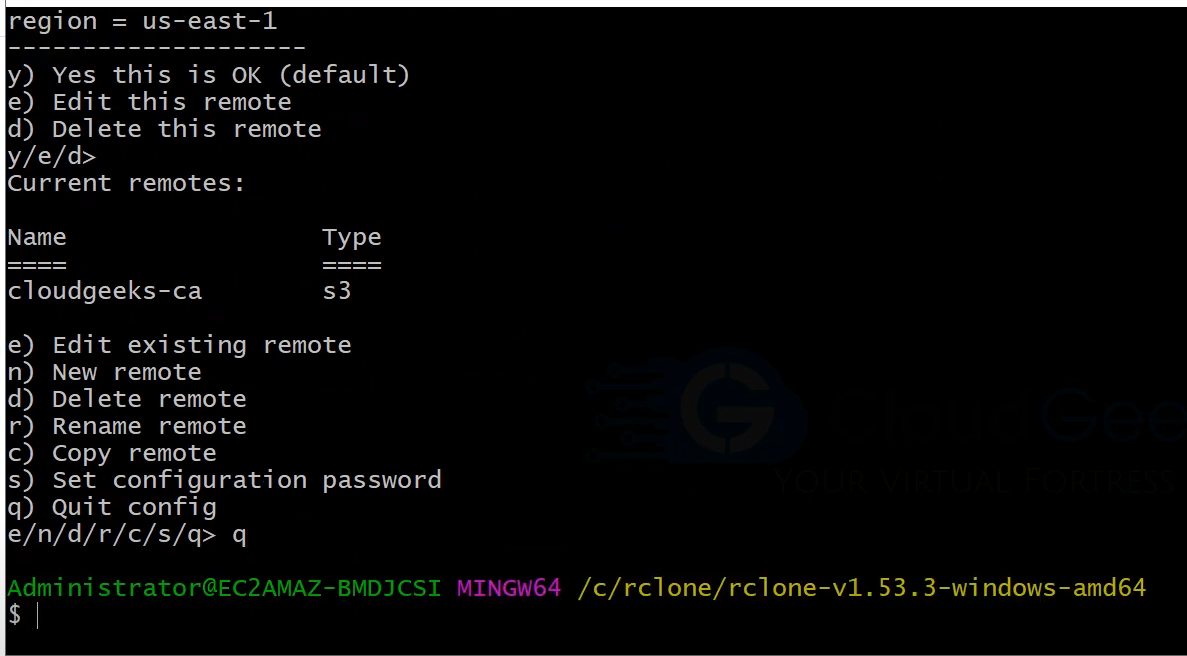

- 엔터후 최종 종료

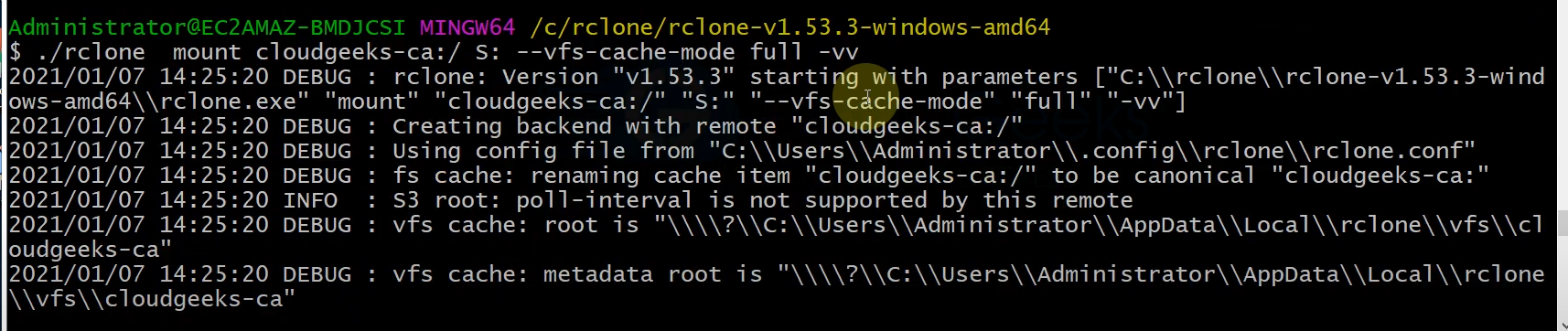

- RC 실행

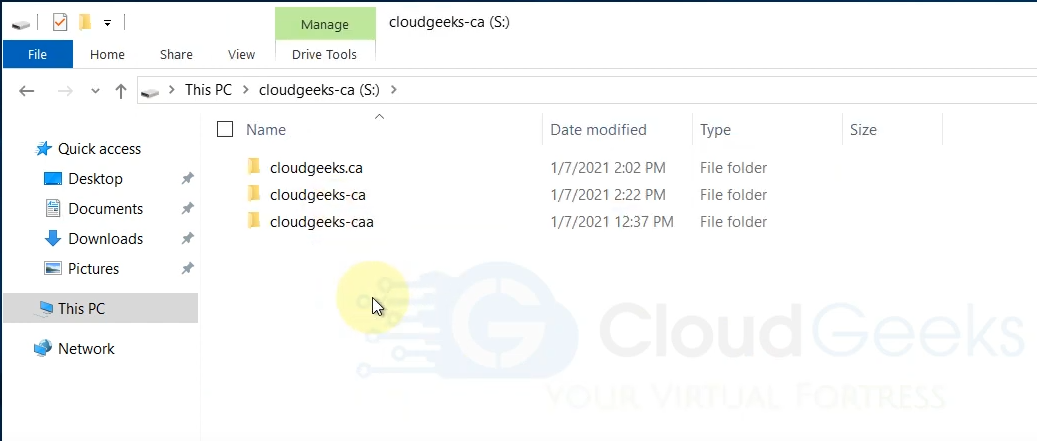

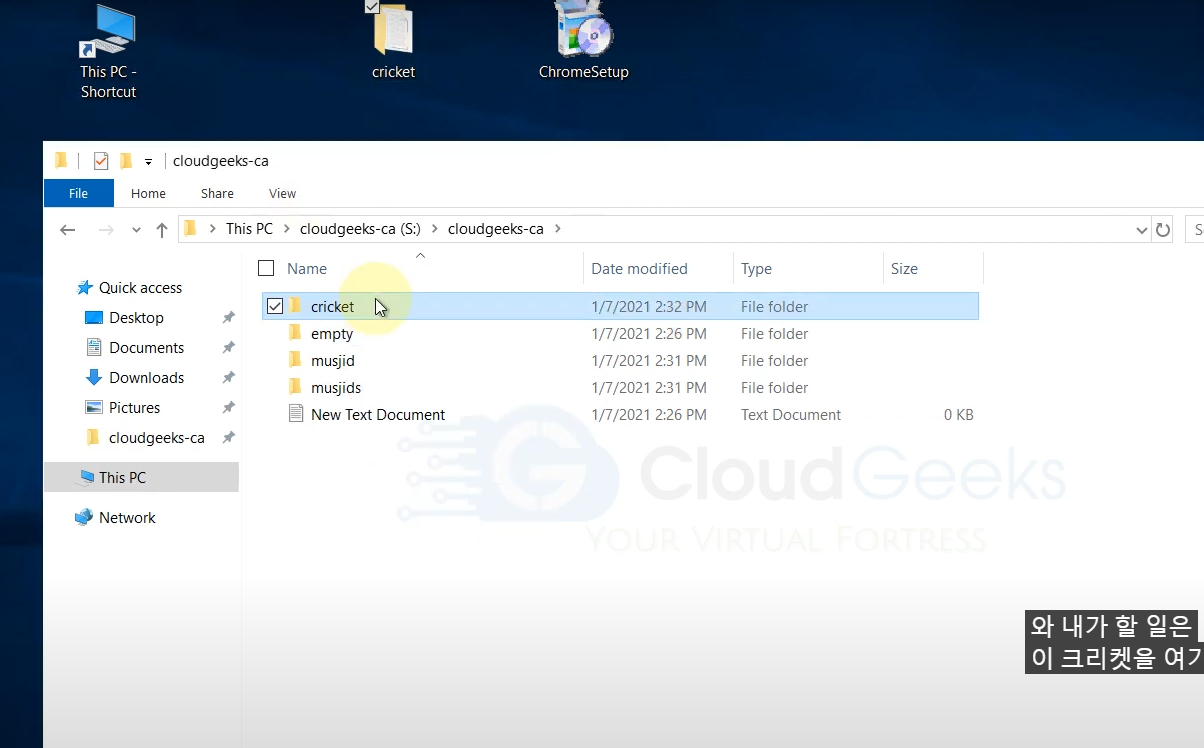

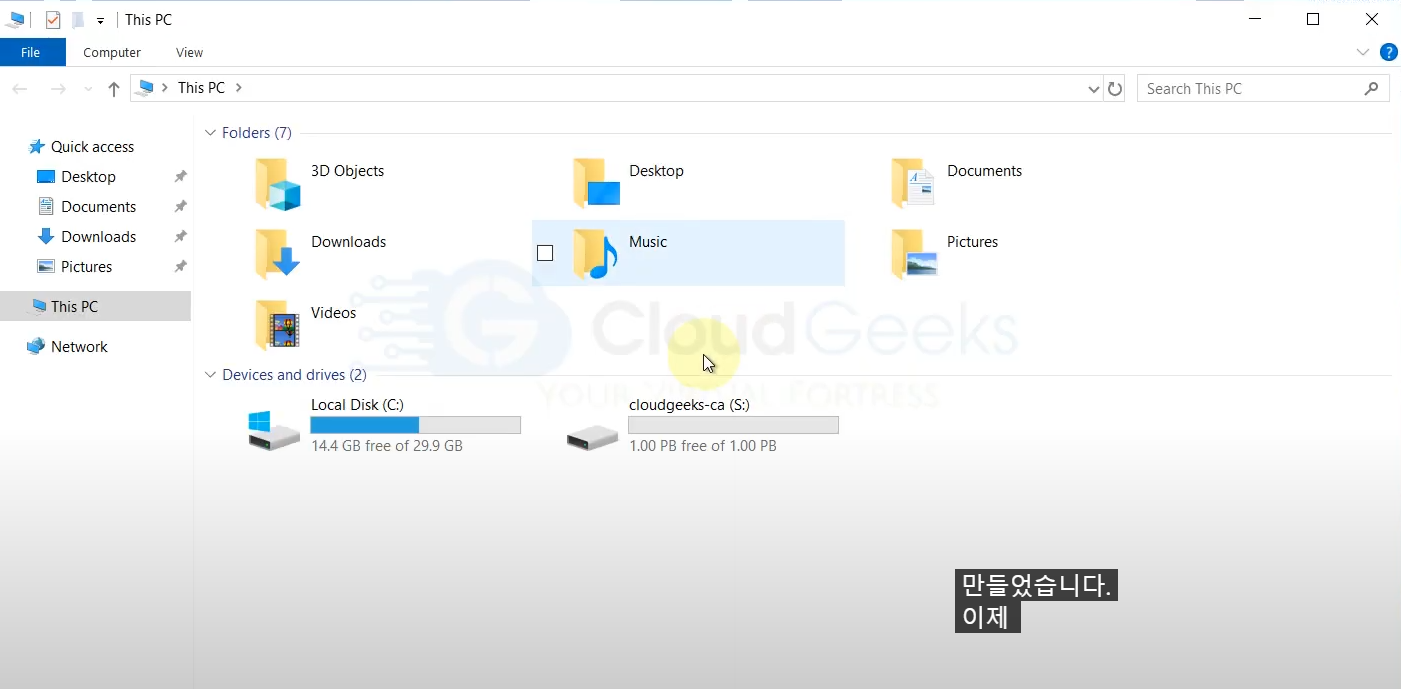

## S3 접속화면



- 폴더와 Readme.txt 파일을 동시에 만들어서 복사하기









## 마운트 드라이브 지속성 설정 (Windows 작업)

# How to automate mounting an S3 bucket on Windows boot

# It is convenient when the bucket is mounted as a network drive automatically on Windows boot. Let’s find out how to configure automatic mounting of the S3 bucket in Windows.

# Create the rclone-S3.cmd file in the C:\rclone\ directory.

# Add the string to the rclone-S3.cmd file:

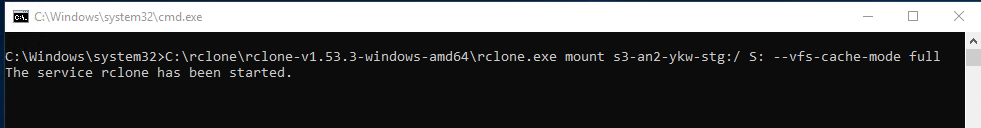

C:\rclone\rclone.exe mount cloudgeeks-ca:/ S: --vfs-cache-mode full

#####################################################################################
Save the CMD file. You can run this CMD file instead of typing the command to mount the S3 bucket manually.

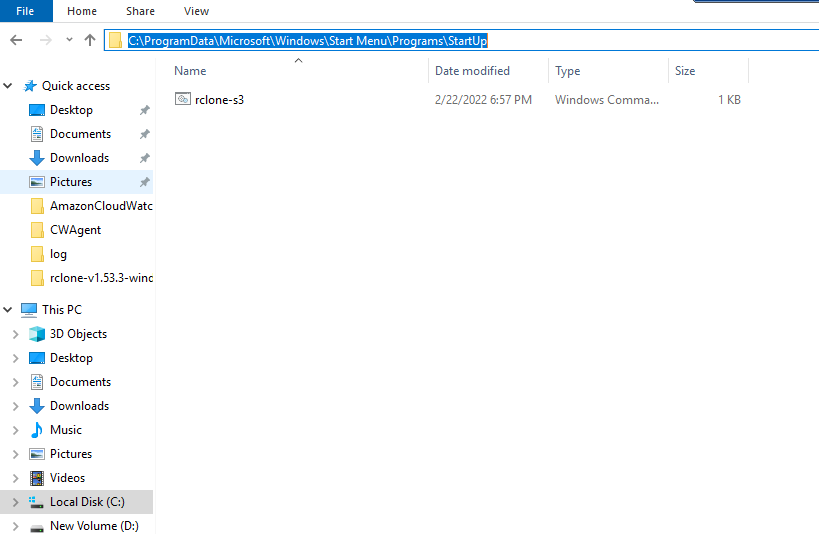

Copy the rclone-S3.cmd file to the startup folder for all users:

C:\ProgramData\Microsoft\Windows\Start Menu\Programs\StartUp

## 위치로 복사하기

























==============================================

https://github.com/quickbooks2018/aws/blob/master/s3-mount

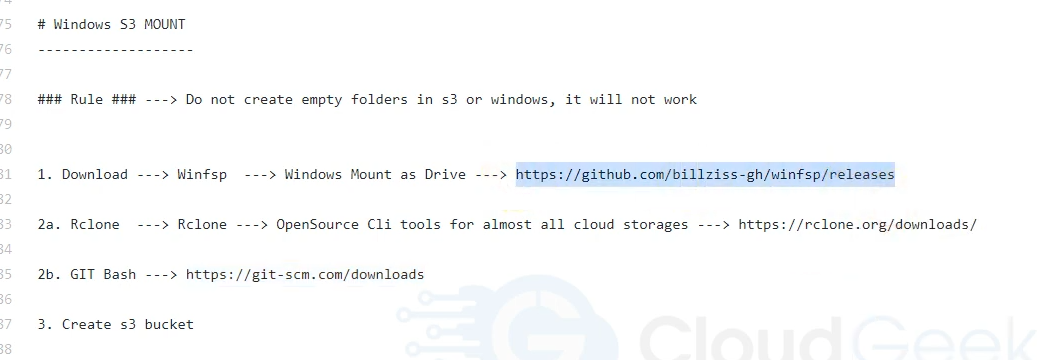

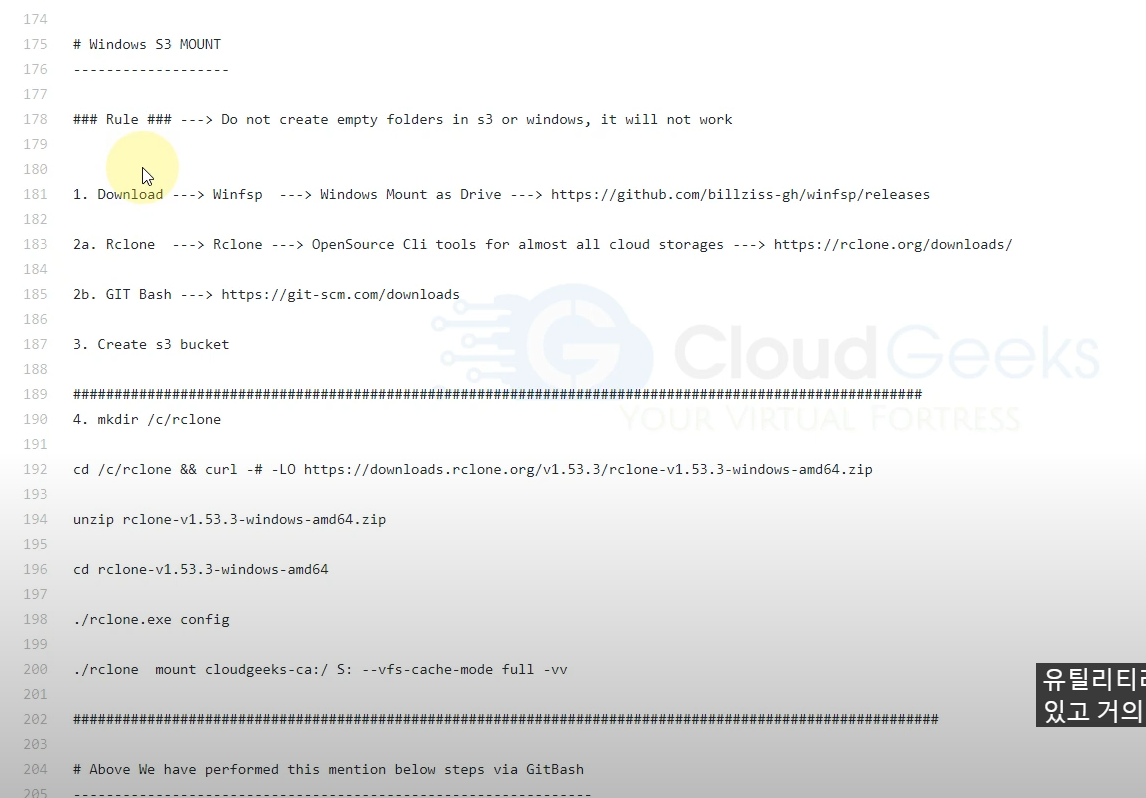

	# Windows S3 MOUNT
	-------------------
	### Rule ### ---> Do not create empty folders in s3 or windows, it will not work
	1. Download ---> Winfsp ---> Windows Mount as Drive ---> https://github.com/billziss-gh/winfsp/releases
	2a. Rclone ---> Rclone ---> OpenSource Cli tools for almost all cloud storages ---> https://rclone.org/downloads/

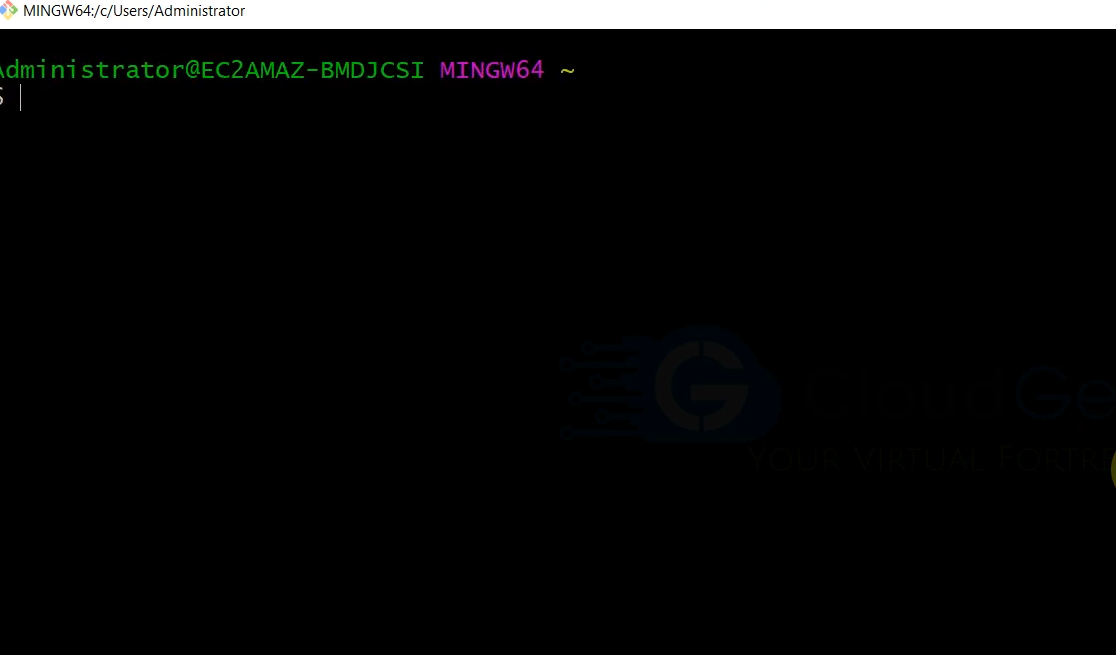

	2b. GIT Bash ---> https://git-scm.com/downloads
	3. Create s3 bucket
	#######################################################################################################

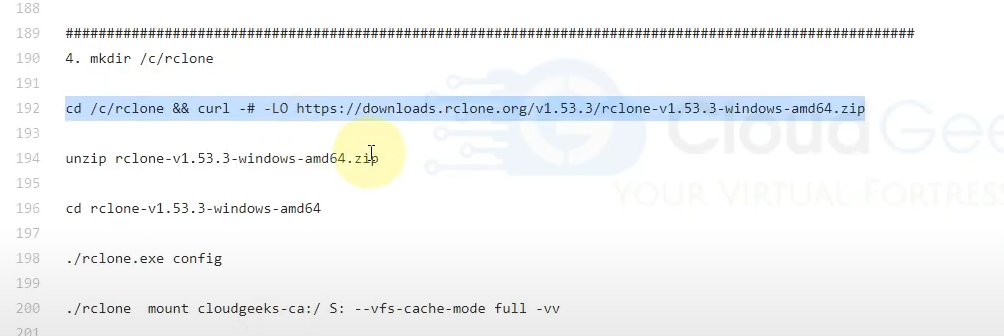

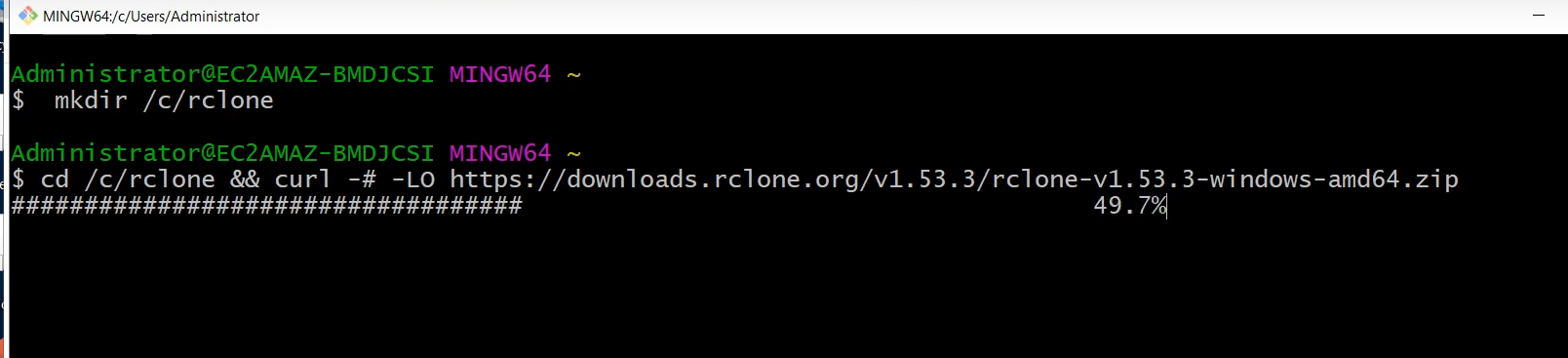

	4. mkdir /c/rclone
	cd /c/rclone && curl -# -LO https://downloads.rclone.org/v1.53.3/rclone-v1.53.3-windows-amd64.zip
	unzip rclone-v1.53.3-windows-amd64.zip
	cd rclone-v1.53.3-windows-amd64
	./rclone.exe config

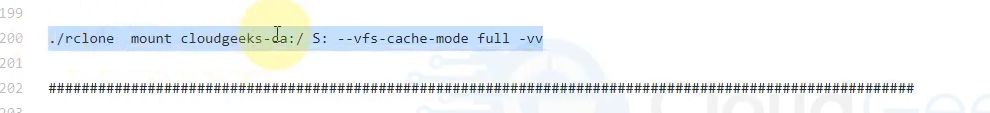

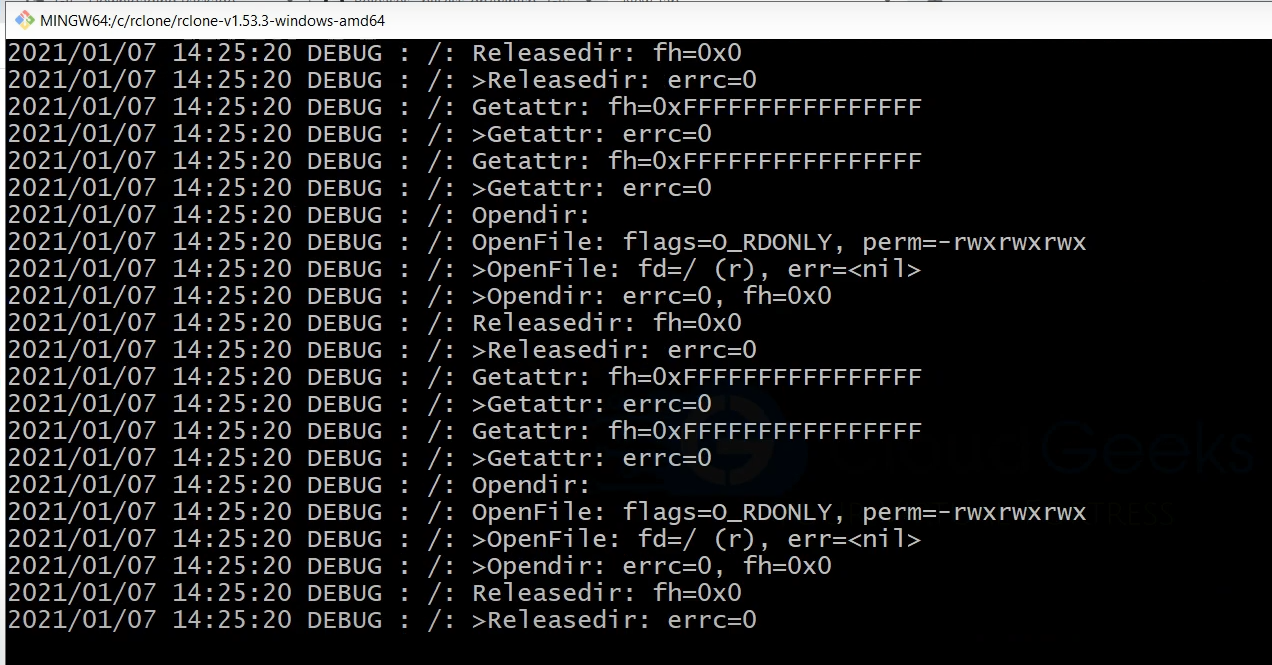

	./rclone mount cloudgeeks-ca:/ S: --vfs-cache-mode full -vv
	#########################################################################################################
	# Above We have performed this mention below steps via GitBash
	---------------------------------------------------------------
	---> echo "C:\rclone\rclone.exe mount cloudgeeks-ca:/ S: --vfs-cache-mode full" > rclone-S3.cmd
	---> cp /c/rclone/rclone-S3.cmd /c/ProgramData/Microsoft/Windows/Start\ Menu/Programs/StartUp/rclone-S3.cmd
	# How to automate mounting an S3 bucket on Windows boot
	# It is convenient when the bucket is mounted as a network drive automatically on Windows boot. Let’s find out how to configure automatic mounting of the S3 bucket in Windows.
	# Create the rclone-S3.cmd file in the C:\rclone\ directory.
	# Add the string to the rclone-S3.cmd file:
	C:\rclone\rclone.exe mount cloudgeeks-ca:/ S: --vfs-cache-mode full
	#####################################################################################
	Save the CMD file. You can run this CMD file instead of typing the command to mount the S3 bucket manually.
	Copy the rclone-S3.cmd file to the startup folder for all users:
	C:\ProgramData\Microsoft\Windows\Start Menu\Programs\StartUp
	As an alternative, you can create a shortcut to C:\Windows\System32\cmd.exe and set arguments needed to mount an S3 bucket in the target properties:
	C:\Windows\System32\cmd.exe /k cd c:\rclone & rclone mount blog-bucket01:blog-bucket01/ S: --vfs-cache-mode full
	# S3 Policy
	---------------
	{
	"Version": "2012-10-17",
	"Statement": [
	{
	"Effect": "Allow",
	"Action": [
	"s3:ListBucket"
	],
	"Resource": "arn:aws:s3:::BUCKET-NAME"
	},
	{
	"Effect": "Allow",
	"Action": [
	"s3:PutObject*",
	"s3:GetObject*",
	"s3:DeleteObject*"
	],
	"Resource": "arn:aws:s3:::BUCKET-NAME/*"
	}
	]
	}
	# https://www.nakivo.com/blog/mount-amazon-s3-as-a-drive-how-to-guide/
	# https://blog.spikeseed.cloud/mount-s3-as-a-disk/













































https://www.youtube.com/watch?v=9mRzKdmHMOE&t=246s
